Sectional Screw Flights

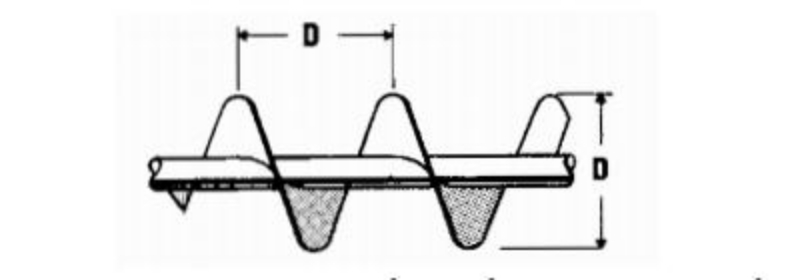

Single Flight Standard Pitch

Conveyor screw with pitch spacing equal to the diameter are considered standard and are suitable for most augers of conventional horizontal design.

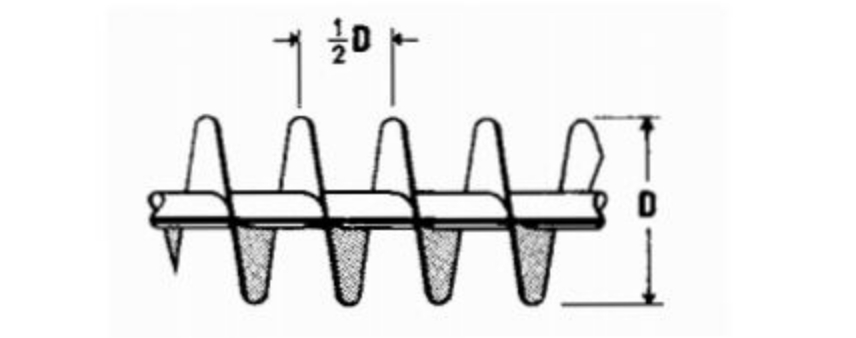

Single Flight Half Pitch

Half pitch conveyors are recommended for inclined or vertical conveying and for materials which are very free flowing.

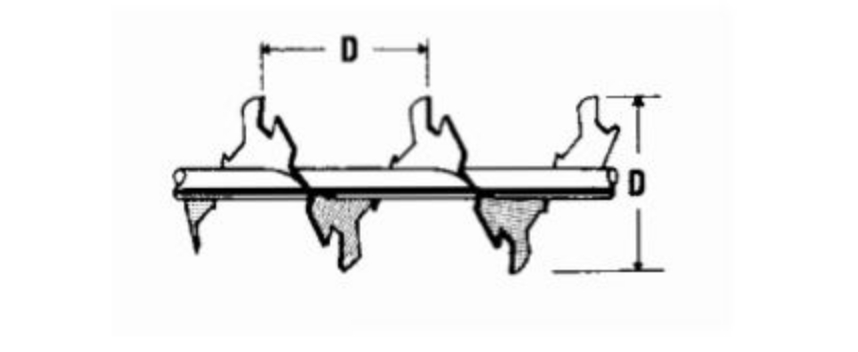

Single Cut-Flight

The screw flight periphery is notched to supplement the conveying action with a moderate mixing action.

Flight Ribbon

Ribbon flights are excellent for sticky or gummy materials where the gap between the screw and the pipe prevent material build-up.

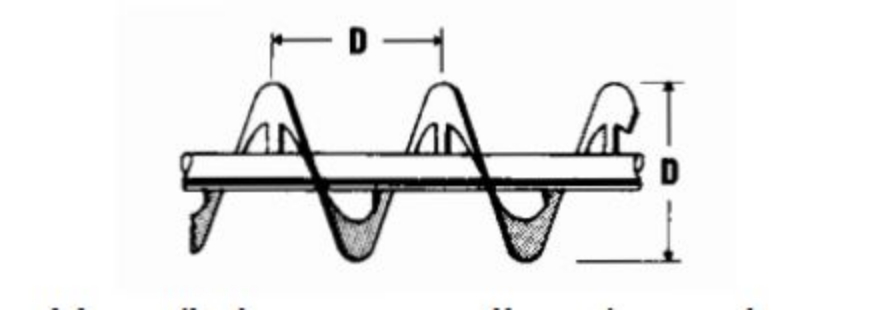

Double Flight Standard Pitch

Double pitch flights produce a smooth gentle flow, and assist in removing product from hoppers, or post hole digging.

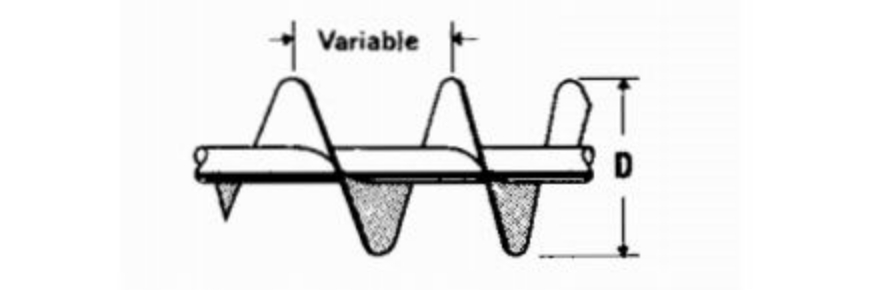

Single Flight Variable Pitch

Flights with pitch progressively increased are used to draw fine, free flowing materials uniformly from the entire length of the feed opening.

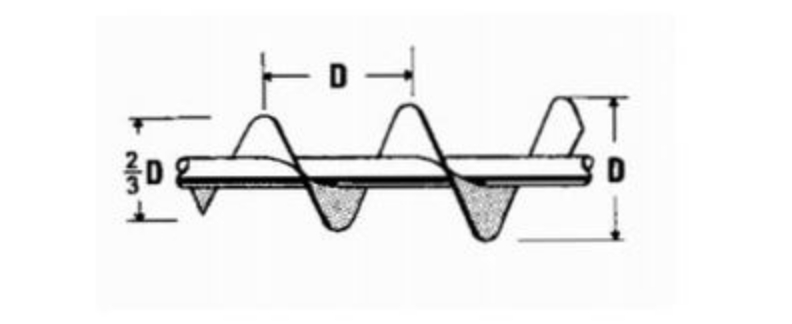

Single Tapered Flight Standard Pitch

Ribbon flights are excellent for sticky or gummy materials where the gap between the screw and the pipe prevent material build-up.

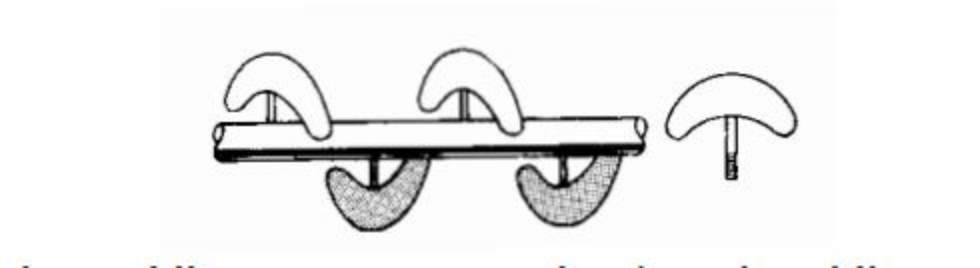

Vane Paddle Conveyer

The paddle conveyor is made of steel paddles on threaded rod shanks inserted through the pipe. Conveying action can be controlled by adjusting the paddle angle. Excellent for stirring, blending or mixing dry or fluid materials.

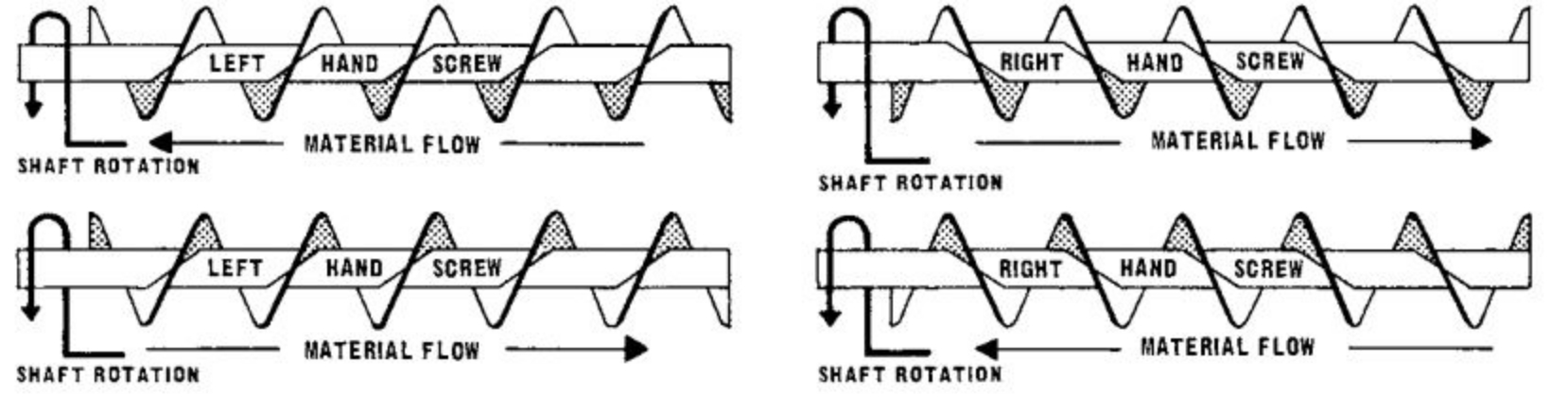

Direction of Screw Rotation and Material Travel

Contact Us

Jacmor's highly skilled design team can assist you in determining what flights are needed for your application (mixer ribbons, variable pitch screw flight or tapered flights). To find out how we can make your auger / screw flight equipment the most efficient it can be, contact us.
